Rotating Trolleys up to 6 t

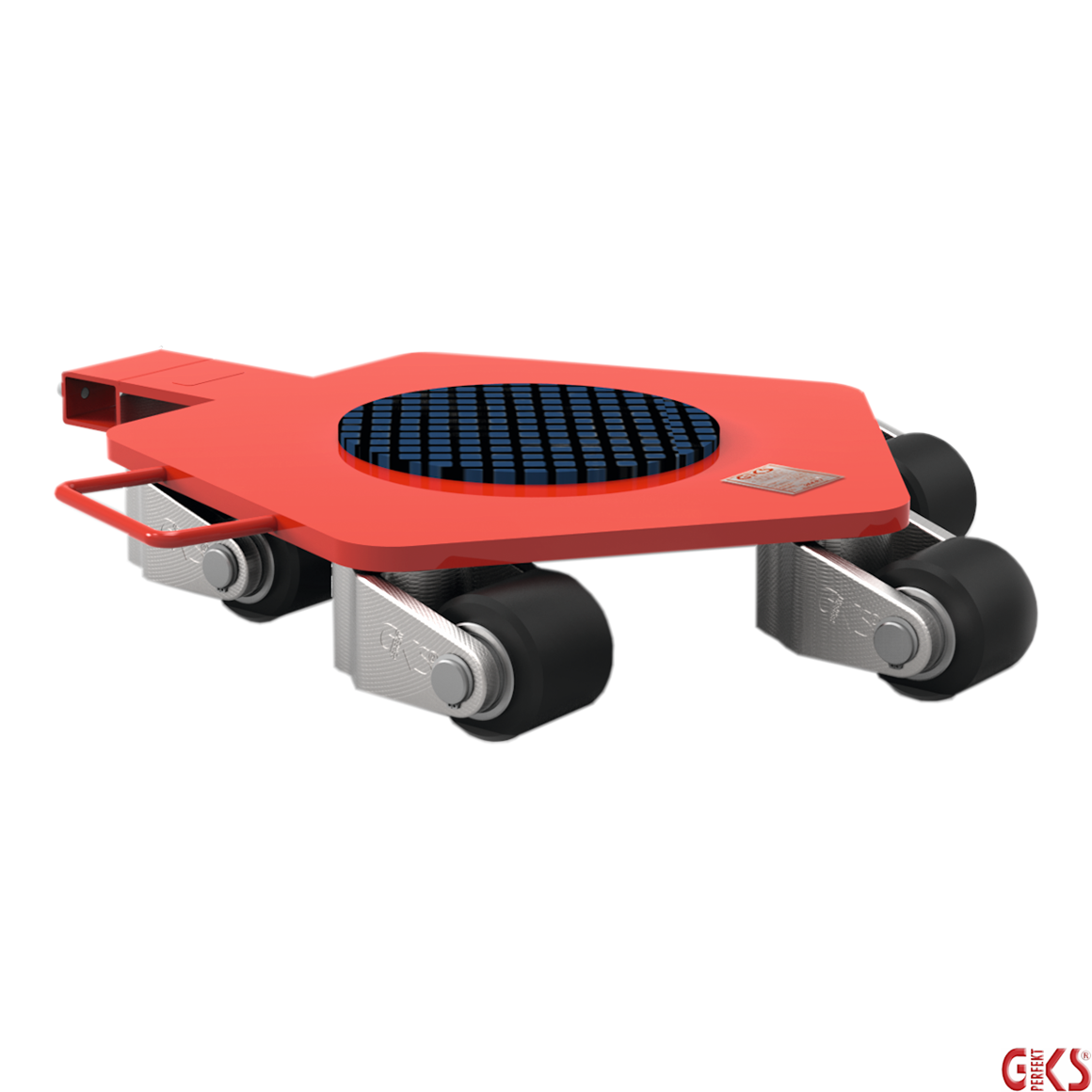

RL4
| Load Capacity | 40 kN / 8,800 lbs (4 t) |
| Number of Wheels / Dimensions | 5 à 3.3x3.3" (85x85 mm) |
| Loading Height | 4.3" (110 mm) |
| Size of rubber pad Ø | 9.8" (250 mm) |
| Overall Dimensions (LxWxH) | 29.9x22.1x4.3" (760x560x110 mm) |
| Tare Weight | 110 lbs (50 kg) |
| Item Number | 10240 |
 | Dimension sheet RL4 |

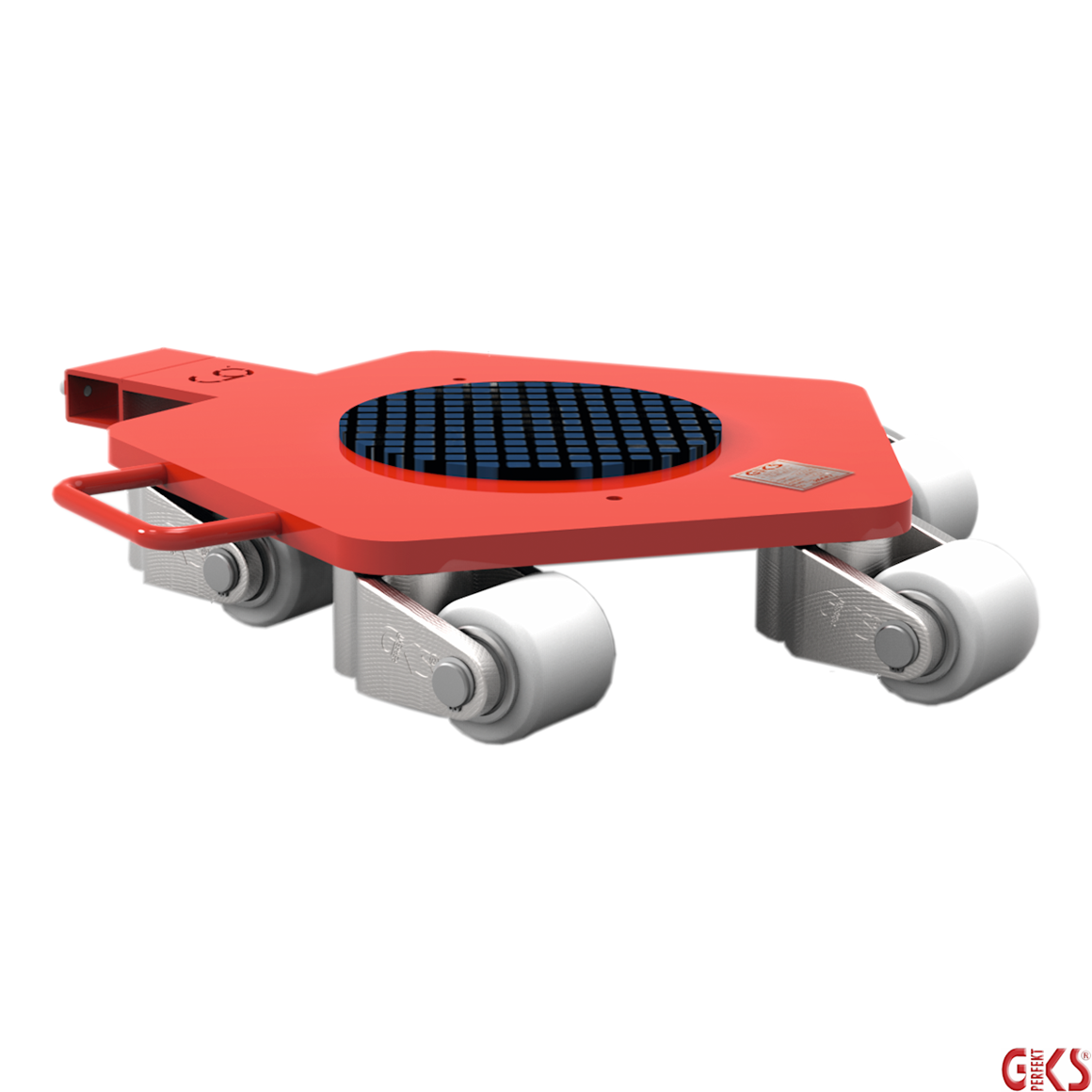

RL6
| Load Capacity | 60 kN / 13,200 lbs (6 t) |
| Number of Wheels / Dimensions | 5 à 3.3x3.3" (85x85 mm) |
| Loading Height | 4.6" (118 mm) |
| Size of rubber pad Ø | 9.8" (250 mm) |
| Overall Dimensions (LxWxH) | 29.9x22.1x4.6" (760x560x118 mm) |
| Tare Weight | 132 lbs (60 kg) |
| Item Number | 13439 |
| Dimension sheet RL6 |

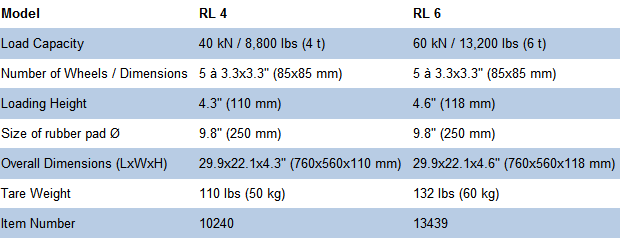

Comparison Chart
