Rotating Trolleys up to 2 t

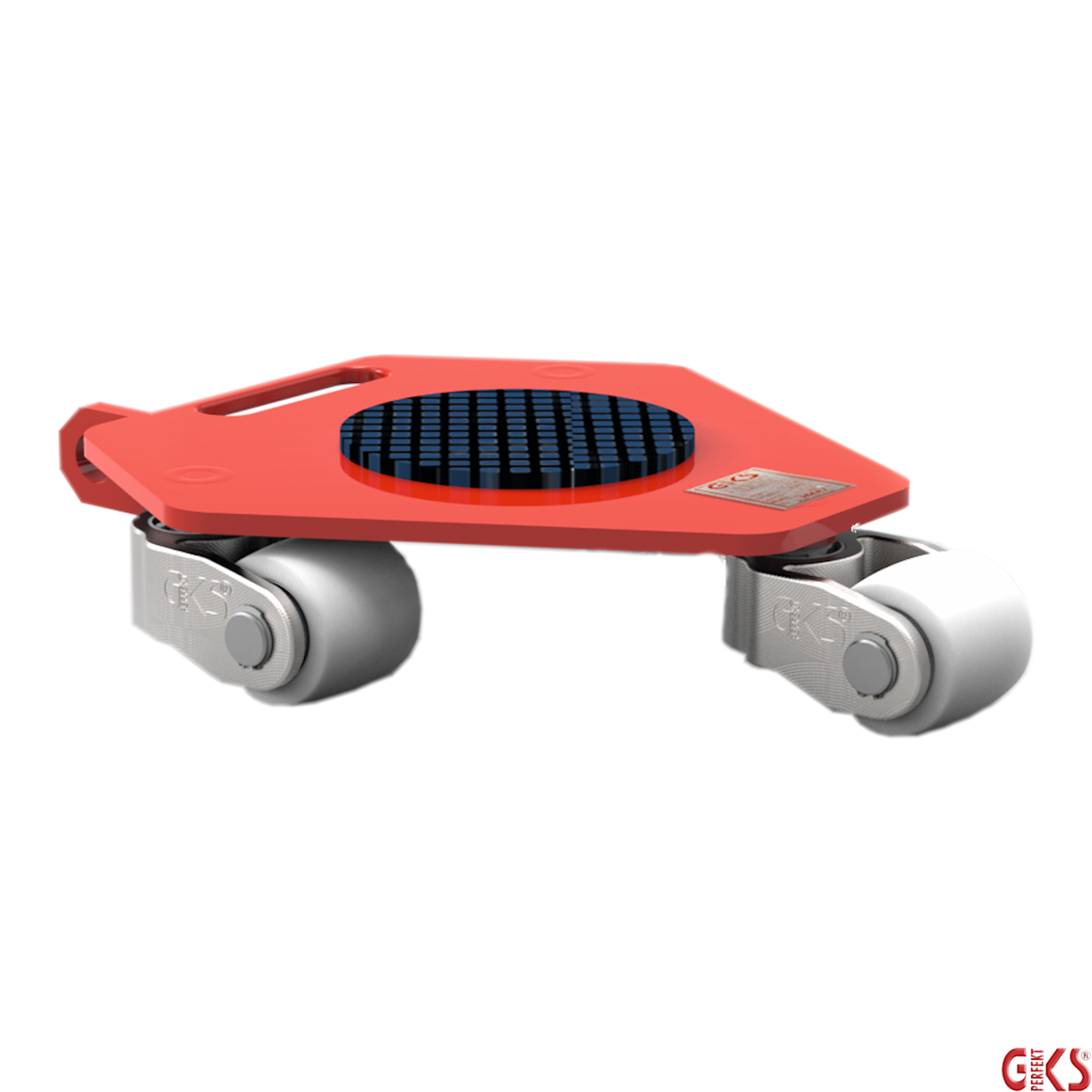

RL1
| Load Capacity | 10 kN / 2,200 lbs (1 t) |
| Number of Wheels / Dimensions | 3 à 3x2.6" (75x66 mm) |
| Loading Height | 3.9" (100 mm) |
| Size of rubber pad Ø | 6.7" (170 mm) |
| Overall Dimensions (LxWxH) | 14.8x14.9x3.9" (376x379x100 mm) |
| Tare Weight | 33 lbs (15 kg) |
| Item Number | 11456 |
 | Dimension sheet RL1 |

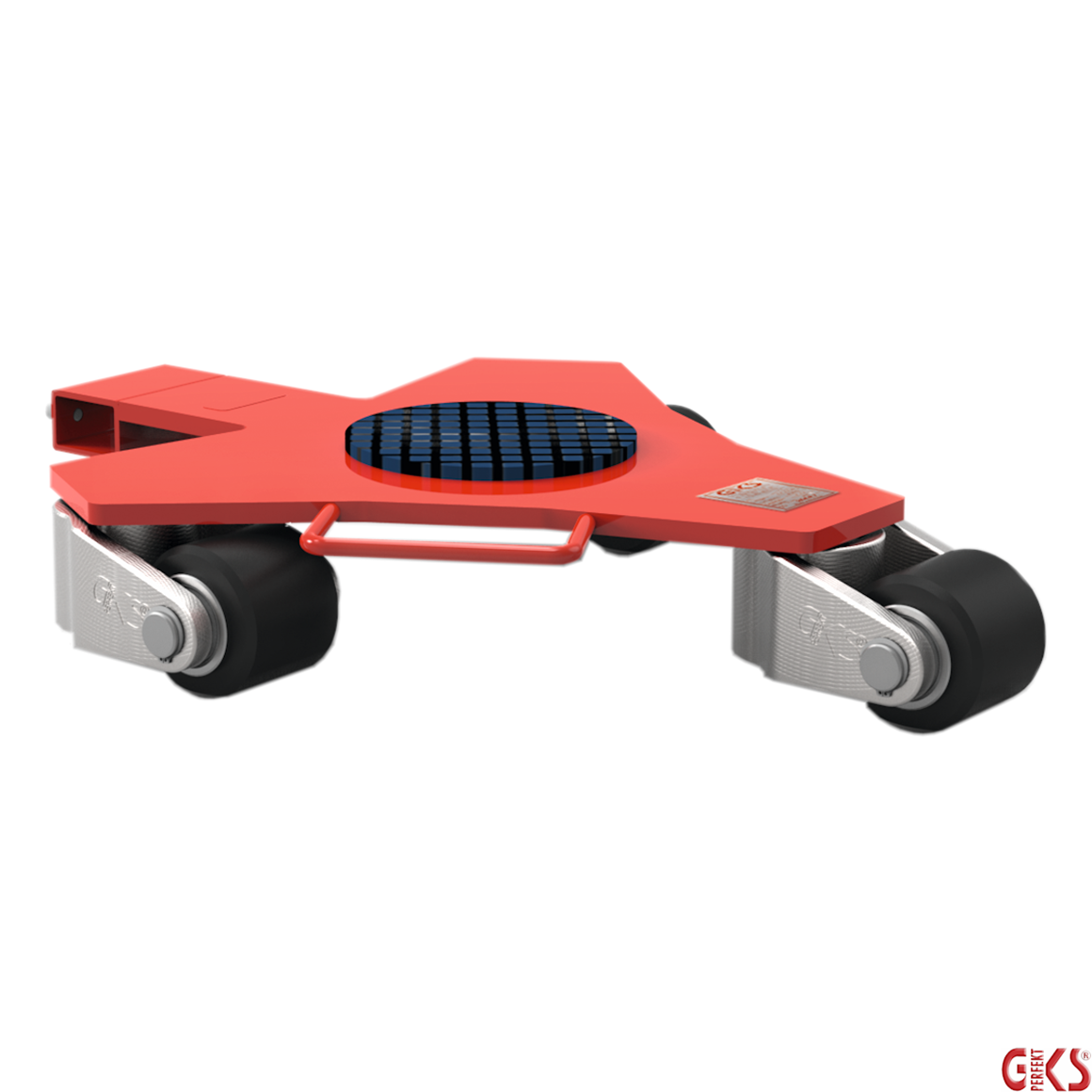

RL2
| Load Capacity | 20 kN / 4,400 lbs (2 t) |
| Number of Wheels / Dimensions | 3 à 3.3x3.3" (85x85 mm) |
| Loading Height | 4.3" (110 mm) |
| Size of rubber pad Ø | 6.7" (170 mm) |
| Overall Dimensions (LxWxH) | 27x20.3x4.3" (685x515x110 mm) |
| Tare Weight | 66 lbs (30 kg) |
| Item Number | 10238 |
| Dimension sheet RL2 |

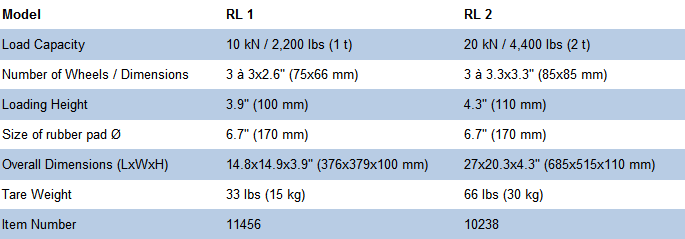

Comparison Chart
